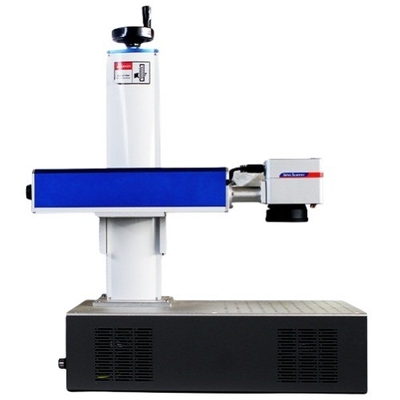

110mm*110mm Marking Area Mini Fiber Laser Marking Machine for Steel Metal Plastic

Price:	$1,132.00 - $1,650.00/sets

Details Information

Product Description

Detail Information

Place of Origin

Shandong, China

Brand Name

XINHONG LASER

Application:

Laser Marking, Metal Plastic Jewelry Cutting Engraving

Working Accuracy:

0.01mm

Graphic Format Supported:

AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Type:

Fiber Laser

Condition:

New

CNC Or Not:

Yes

Control Software:

EZCAD

Laser Source Brand:

MAX

Weight (KG):

150 KG

Key Selling Points:

High Productivity

Warranty:

More Than 5 Years

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert

Marking Area:

110mm*110mm

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

More Than 5 Years

Core Components:

Motor, Engine, Laser Source

Mode Of Operation:

Pulsed

Configuration:

Bench-top

Feature:

Air-cooled

Laser Power:

20W /30w/ 50w(Optional)

Product Name:

Lazer Marking Machine

Laser Source:

IPG Raycus Max JPT

Applicable Material:

Metal Materials

Keywords:

Laser Markng Machine

Machine Type:

Mini Portable Laser Marker

Marking Material:

Metal Jewelry Silver Gold

Function:

Marking Logo Metal Non Metal

After-sales Service Provided:

Lifetime Warranty

Product Description

Fiber laser marking machine 20w/30W/50W desktop & portable type

1. It can process a variety of metal and non-metal materials. Especially for high hardness, high melting point, brittle materials, marking is more advantageous.

2. It belongs to non-contact processing, does not damage the product, has no tool wear, and has good marking quality.

3. The laser beam is thin, the processing material consumption is small, and the processing heat-affected zone is
small.

4. High processing efficiency, computer control, easy to realize automation.

Technical Parameters

1	Model	XH-Fiber laser marking machine 20w/30W/50W
2	Marking Area	100100mm-300300mm(Option)
3	Power	20w/30w/50w
4	Laser Source Brand	Raycus/MAX
5	Laser Wavelength	1064±10nm
6	Minimum line width	0.01mm
7	Marking speed	0-7000mm/s
8	Working voltage	220V±10%/50Hz/4A
9	Gross weight	125KG
10	Machine Warranty	Life-long

Company Profile

Welcome to visit our factory

Office and staff

Laser Machines Products

About us

Xinhong Machinery Manufacturing Co., Ltd is a professional high-tech enterprise integrating R&D, production and trade. Our company is mainly engaged in the developing, producing and exporting of fiber laser cutting machines, laser welding machines,laser marking machines,and metal processing machinery manufacturing. The mechanical equipment produced by the company is widely used in industrial fields and products are best-selling across the country and overseas markets. The company has a high-quality and professional management and technical team. "Quality First, Service First" is our manufacturing philosophy. To guarantee the interests of our customers, we promise lifelong after-sales service. With reliable quality and service, our products are deeply trusted by customers.

Certifications

ISO9001

RoHS

Exhibition & Feedback

Packing and Shipping

1.Checked Complete Product

2. Protective Film Wrapping

3.Wooden Box Delivery

4.Transportation

5.Container Loading

6.Shipment

FAQ

✦How can I choose the most suitable machine？

Please tell us, then we can recommend the suitable machine to you.

1)What kind of work you would like the machine to do? Cutting, welding or marking.

2)What kind of materials mainly?

3)Max thickness for cutting or welding?

4)How big a working area do you need?

5)What power do you need?

✦How to operate the machine ?

We will deliver English manual and video with the machine to you. If you still need our help, please contact us any time.

✦If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

✦What payment method you accept?

On Alibaba, we supply Trade Assurance Order, and via this method, you could pay by T/T, L/C, Credit Card, etc.

✦How long is the delivery time of metal machine?

For standard metal machine, it would be 20-25 working days;

For non-standard metal machine and customized machines according to clients specific requirements, it would be about 35 days.
