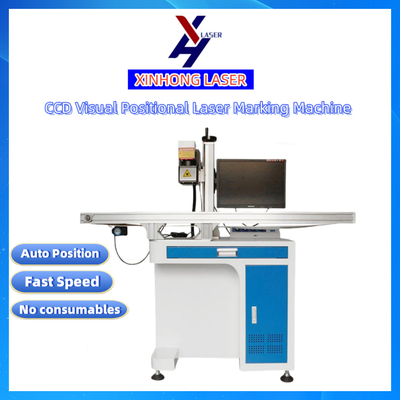

CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing

MOQ: 1 set
Price: USD2299-2499/Set
Standard Packaging: Wooden box
Delivery Period: 10-15 working days
Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
Xinhong Lasser
Certification
CE,RoHS,ISO9001 certificates
Model Number
XH-CDD marker Series
Product Name:
Visual Laser Marking Machine With Conveyor Belt
Laser Source:
Raycus/Max/JPT (Optional)
Laser Type:
Fiber/CO2/UV/MOPA
Power:
20/30/50/100W
Marking Area:
110/200/300mm(optional)
Galvanometer:
SINO-GALVO
Control System:
BJJCZ
Control Software:
EZCAD2.14.10
Machine Size:
1370*1640*850mm
Conveyor Belt:
1200mm
Highlight:

CCD Vision Laser Marking Machine

,

Automatic Sensing Laser Marking Machine

,

CCD Vision Positioning fiber laser marker

Product Description

CCD Vision Positioning Automatic Sensing Laser Marking Machine on Assembly Production Line Conveyor Belt



★ Product Description

CCD Visual positioning laser marking machine is mainly aiming at the problems of difficult feeding, poor positioning and slow speed caused by the difficulty of fixture design and manufacture in batch irregular marking, the problem is solved by using an external CCD camera to capture feature points in real time.



★ Application

1.The marking products can be placed at will, and multiple products can be placed at one time.

2.The products can be identified at any position, at any angle, and any shape.

3.The software can basically automatically identify them. Automatic marking of multiple products can be completed at one time, which greatly improves the marking efficiency.



★ Technical Parameters



1 Product Name Visual Laser Marking Machine with Conveyor Belt
 2 Laser Type Fiber CO2 UV
3 Power 20/30/50/100W 30/40/60W 3/5/10W
4 Laser Source Raycus/MAX/JPT
5 Marking Range 75*75mm-300*300mm(customizable)
6 Maxi Marking Speed 7000mm/s
7 Control System BJJCZ
8 Control Software EZCAD2
9 Machine Size 1370*1640*850mm
10 Conveyor Belt 1200mm
11 Power Supply 220V 50hz
12 Lifetime 100000 hours



★ Real Machine Display

CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing 0

CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing 1



★ Sample Show

CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing 2
