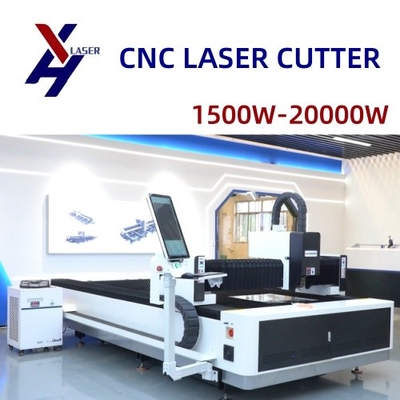

Stainless Steel Sheet Fiber Laser Cutting Machine 6kw

MOQ: 1 set
Price: FOB 12000 USD-18000USD
Standard Packaging: Container
Delivery Period: 30-55 working days
Payment Method: T/T
Supply Capacity: 4000SETS/YEAR
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XINHONG
Certification
CE
Model Number
XH-3015L
Cnc Or Not:
Yes
Cutting Accuracy:
±0.01mm
Laser Output Control:
0-100% Set By Software
Cnc:
Yes
Application:
Industrial Metal Cutting
Laser Source Brand:
Raycus/MAX
Laser Head:
Raytools Auto Focus BM110
Dimensions:
4200*2250*1840mm
Power Supply:
220V/50HZ, 110V/60HZ
Working Temperature:
0-35℃
Machine Weight:
1800kg
Working Area:
3080mm*1530*100mm
Controller System:
Raytools XC3000S
Beam And Gantry:
Aviation Aluminum
Air Conditioner:
Included
Electronic Components:
Schneider
Guide Rail:
PEK
Lubrication System:
Fully Automatic
Highlight:

6kw Fiber Laser Cutting Machine

,

Sheet Fiber Laser Cutting Machine

,

Stainless Steel Laser Metal Cutting Machine

Product Description

Stainless Steel Sheet Fiber Laser Cutting Machine 6kw



Product Features

1 Overall 8mm plate welded bed, mortise and tenon structure,
2 1-3kw laser built into the bed, external chiller.
3 Partition dust removal optional, standard configuration without partition dust removal
4 Anti-scalding optional, standard configuration without anti-scalding components.
5 Standard front electric box, optional independent electric box.
6 200 air ducts on both sides to increase the ventilation effect.



1 Model XH-3015L XH-4020L XH-6025L XH-8025L
2 Cutting Working Area 3000*1500mm 4000*2000mm 6000*2500mm 8000*2500mm
3 Power                                      1500w/2000w/3000w/6000w/12000W/20000W
4 Laser Source Brand                                       Raycus/MAX
5 Laser Head                                       Raytools
6 Control System                                       Cypcut
7 Laser type                                       Fiber laser generator
8 Guiding Rail                                       Taiwan Hiwin
9 Helical Rack                                       Taiwan YYC
10 Motor                                       Yaskawa Servo
11 Water Chiller                                       Hanli
12 Gross weight                                       1800KG
13 Machine Warranty                                        Lifetime

Stainless Steel Sheet Fiber Laser Cutting Machine 6kw 0

Stainless Steel Sheet Fiber Laser Cutting Machine 6kw 1
