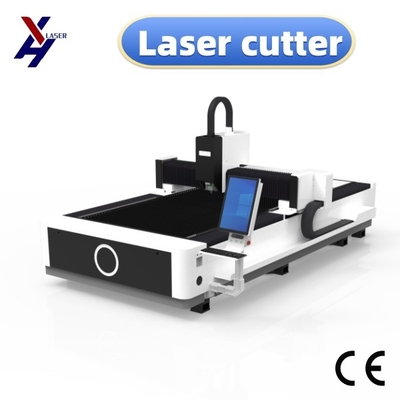

3kw 6kw 12kw High Precision 3015 Fiber Laser Cutting Machine With Single Platform

MOQ: 1 set
Price: FOB 12000 USD-18000USD
Standard Packaging: Container
Delivery Period: 30-55 working days
Payment Method: T/T
Supply Capacity: 4000SETS/YEAR
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XINHONG
Certification
CE
Model Number
XH-3015L
Resolution Accuracy:
< 0.01mm
Reduction Gears:
Alpha Germany
Cnc Or Not:
Yes
Cutting Accuracy:
±0.01mm
Transmission:
Belt Transmission
Laser Output Control:
0-100% Set By Software
Cnc:
Yes
Driver:
Yako Driver
Max. Cutting Speed:
40m/min
Color:
Customizable
Application:
Industrial Metal Cutting
Laser Source Brand:
Raycus
Laser Head:
Raytools Auto Focus BM110
Dimensions:
4200*2250*1840mm
Power Supply:
220V/50HZ, 110V/60HZ
Working Temperature:
0-35℃
Machine Weight:
1800kg
Working Area:
3080mm*1530*100mm
Controller System:
Raytools XC3000S
Beam And Gantry:
Aviation Aluminum
Water Chiller:
1500W Hanli
Air Conditioner:
Included
Highlight:

12kw Fiber Laser Cutting Machine

,

High Precision Fiber Laser Cutting Machine

,

3kw Fiber Laser Cutting Machine

Product Description

CNC Fiber 1mm 5mm 20mm Stainless Steel Carton Steel Laser Cutting Machine For Metal

This laser cutting machine adopts open structure and single operation platform. When the equipment is running, you can easily check the progress and cutting quality of laser cutting.

Cast iron bed enhances the strength of the bed structure.
We also provide you with double replacement platform for choice. How to choose the working area? It depends on your metal sheet. We provide 3015/4015/4020/6020/6015/6025 types of working tables for your reference, and support customizing your design (OEM).

1 Model XH-3015L XH-4020L XH-6025L XH-8025L
2 Cutting Working Area 3000*1500mm 4000*2000mm 6000*2500mm 8000*2500mm
3 Power                                      1500w/2000w/3000w/6000w/12000W(option)
4 Laser Source Brand                                       Raycus/MAX with CE
5 Laser Head                                       Raytools auto focus BM110
6 Control System                                        Raytools XC3000S
7

Reducer

                                       Japan Shimpo/France Motoreducer
8

Electronic Components

                                       Schneider
9

Guide Rail

                                       PEK
10

Gross weight

                                      1800kg
11

Air Conditioner

                                       Included
12

Machine Size

                                       4200*2250*1840mm
13

Total Power

                                       16.78KW


3kw 6kw 12kw High Precision 3015 Fiber Laser Cutting Machine With Single Platform 0

3kw 6kw 12kw High Precision 3015 Fiber Laser Cutting Machine With Single Platform 1

Tags:

fiber laser metal cutting machine,

stainless steel laser cutting machine,

metal laser cutter
