CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic

MOQ: 1 set
Price: USD457-487/Set
Standard Packaging: Wooden box
Delivery Period: 10-15 working days
Payment Method: T/T,Western Union
Supply Capacity: 10000 pcs one year
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
Xinhong Lasser
Certification
CE,RoHS,ISO9001 certificates
Model Number
XH-CO2 laser cutter
Product Name:
3020 CO2 Laser Engraving Machine
Laser Source:
Reci/Yongli
Laser Type:
CO2
Power:
40W/50W
Working Area:
300*200mm
Control System:
Ruida Software/M2 Shenzhouyike
Engraving Thickness:
1----5mm
Cutting Thickness:
1----15mm
Water Chiller:
Hanli/S&A
Machine Warranty:
2 Years Warranty
Product Description

CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic


★ Application Materials
Acrylic, Plexiglas,double color board, ABS board,PVC board,bamboo, MDF, wood,paper ,leather,fabric, wool,rubber, resin etc

★ Application Industry
Advertisement, Garments sampling, Small width tailoring, leather industry, shoemaking, decoration, furniture, packing and
printing, model industry, craftwork and gift, etc.

★ Technical Parameters

1ModelXH-3020 CO2 laser engraving machine
2Cutting Working Area300*200mm
3Power40W/50W(optional)
4Laser Source BrandChaoya
5Control SystemM2 Shenzhouyike
6Engraving speed≤3000mm/min
7Engraving thickness1----15mm(depend on the materials)
8Locating Precision≤0.01mm
9Support FormatBMP,PLT,AI,CDR,DXF,etc
10Working materialNon-metallic material
11Cooling Methodwater-cooling
12Up and down work table0--400mm electric lift(Optional auto focus)
13Workbenchhoneycomb table or blade table(optional)
14Gross weight26KG
15Machine Warranty2 years warranty


★More Machine Details
1.Laser head with CCD camera
The aluminum alloy adjustable laser head is
lighter than other metal laser heads,which
can minimize the inertia error when the laser
head moves.
2. Famous brand RECI & CWG tube
Machine choose famous brand laser tube,
durable and stable performance, lifetime last
10000 hours, and we offer you 12 months
3.High precision module linear
The X / Y axis uses a high-precision module
linear & square rail to improve cutting
engraving accuracy. More accurate and
longer working life.
CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic 0
CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic 1

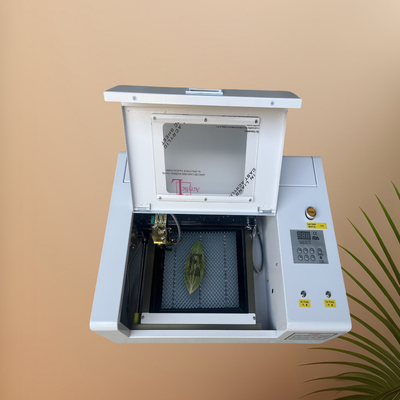

★ 3020 CO2 laser engraving machine Real Machine Display
CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic 2
CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic 3
CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic 4
★ Sample Show
CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic 5

About us
    Xinhong Machinery Manufacturing Co., Ltd is a professional high-tech enterprise integrating R&D,production and trade. Our company is mainly engaged in the developing, producing and exporting of fiber laser cutting machines, laser welding machines,laser marking machines,and metal processing machinery manufacturing. The mechanical equipment produced by the company is widely used in industrial fields and products are best-selling across the country and overseas markets.
    The company has a high-quality and professional management and technical team. "Quality First,Service First" is our manufacturing philosophy. To guarantee the interests of our customers, we promise lifelong after-sales service. With reliable quality and service, our products are deeply trusted by customers.
CNC Laser Cutting and Engraving Machine with CO2 Laser Tube for Textile Wood Acrylic 6
