Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera

MOQ: 1 set
Price: USD2299-2499/Set
Standard Packaging: Wooden box
Delivery Period: 10-15 working days
Payment Method: T/T,Western Union
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
Xinhong Lasser
Certification
CE,RoHS,ISO9001 certificates
Model Number
XH-CDD marker Series
Product Name:
Visual Laser Marking Machine With Conveyor Belt
Laser Source:
Raycus/Max/JPT (Optional)
Laser Type:
Fiber/CO2/UV/MOPA
Power:
20/30/50/100W
Marking Area:
110/200/300mm(optional)
Galvanometer:
SINO-GALVO
Control System:
BJJCZ
Control Software:
EZCAD2.14.10
Machine Size:
1370*1640*850mm
Conveyor Belt:
1200mm
Product Description

Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera



★ Product Description

CCD Visual positioning laser marking machine is mainly aiming at the problems of difficult feeding, poor positioning and slow speed caused by the difficulty of fixture design and manufacture in batch irregular marking, the problem is solved by using an external CCD camera to capture feature points in real time. The marking products can be placed at will, and multiple products can be placed at one time. The products can be identified at any position, at any angle, and any shape. The software can basically automatically identify them. Automatic marking of multiple products can be completed at one time, which greatly improves the marking efficiency.



★ Application

  • Marking products can be arranged freely, allowing for the placement of multiple items at once.

  • Products can be identified regardless of their position, angle, or shape.

  • The software can largely perform automatic identification, enabling the simultaneous marking of multiple products, which significantly boosts marking efficiency.

★ Technical Details



1 Product Name Visual Laser Marking Machine with Conveyor Belt
 2 Laser Type Fiber CO2 UV
3 Power 20/30/50/100W 30/40/60W 3/5/10W
4 Laser Source Raycus/MAX/JPT
5 Marking Range 75*75mm-300*300mm(customizable)
6 Maxi Marking Speed 7000mm/s
7 Control System BJJCZ
8 Control Software EZCAD2
9 Machine Size 1370*1640*850mm
10 Conveyor Belt 1200mm
11 Power Supply 220V 50hz
12 Lifetime 100000 hours

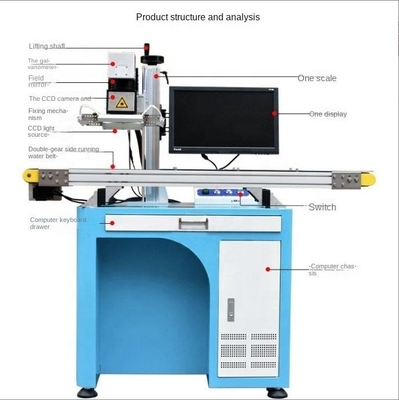

★ Real Machine Display

Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera 0

Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera 1

Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera 2



★ Sample Show

Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera 3


★About us
   Xinhong Machinery Manufacturing Co., Ltd is a professional high-tech enterprise integrating R&D,production and trade. Our company is mainly engaged in the developing, producing and exporting of fiber laser cutting machines, laser welding machines,laser marking machines,and metal processing machinery manufacturing. The mechanical equipment produced by the company is widely used in industrial fields and products are best-selling across the country and overseas markets.
   The company has a high-quality and professional management and technical team. "Quality First,Service First" is our manufacturing philosophy. To guarantee the interests of our customers, we promise lifelong after-sales service. With reliable quality and service, our products are deeply trusted by customers.

Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera 4

Fiber/CO2/UV Laser Marking Machine with Visual Positioning System CCD Camera 5
