50W 100W 3D Mopa Color Laser Marking Machine for Metal Deep Engraving

MOQ: 1 set
Price: USD1132-1165/Set
Standard Packaging: Wooden box
Delivery Period: 7-10 working days
Payment Method: T/T,Western Union
Supply Capacity: 10000 pcs one year
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
Xinhong Lasser
Certification
CE,RoHS,ISO9001 certificates
Model Number
XH-fiber laser marker
Product Name:
Fiber Laser Marking Machine
Laser Source:
Max/Raycus/JPT
Laser Type:
Ultraviolet Light
Power:
20W/30W/50W/100W/200W
Marking Area:
110/150/175mm(optional)
Galvanometer:
SINO-GALVO
Control System:
BJJCZ
Control Software:
EZCAD2.14.10
Machine Size:
800*300*550mm
Net Weight:
55KG
Product Description

50W 100W 3D Mopa Color Laser Marking Machine for Metal Deep Engraving



★ Product Description

Fiber laser marker laser printing machine 20w/30W/50W/100W split type



★ Product Application

laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium,
Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.



★ Product Features

✔ Ultra-Fine Precision – Small beam diameter produces exceptionally clean, detailed marking.
✔ Superior Beam Quality – High laser stability ensures consistent, high-definition results.
✔ Robust & User-Friendly – Reliable machine performance with intuitive operation.
✔ Low Thermal Impact – Narrow pulse width minimizes heat-affected zones, preventing workpiece damage.
✔ Cold Marking Capability – Ideal for sensitive materials due to minimal thermal diffusion.



★Advantages

1. Material Versatility
Capable of processing a wide range of metals and non-metals, with superior marking performance on high-hardness, high-melting-point, and brittle materials.

2. Non-Contact Processing
Operates without physical contact, eliminating product damage and tool wear while ensuring high-quality, consistent marking.

3. Precision & Minimal Impact
The ultra-fine laser beam minimizes material consumption and reduces the heat-affected zone for precise, distortion-free results.

4. High Efficiency & Automation
Delivers fast processing speeds with computer-controlled operation for seamless automation integration.



★ Technical Details

Device model XH-Fiber laser marking machine split type
Output power 20W/30W/50W/100W/200W
Laser source
Raycus/MAX/JPT
Marking range 110*110mm(4.3in*4.3in)
150*150mm (5.9*5.9 in)
175*175mm(6.9in*6.9in) Optional
Marking Speed ≤8000mm/s
Laser wavelength 1064nm
Power supply 220V 50hz
Lifespan 100000 hours
Main Part Size  80*60*60cm
Weight 65KG

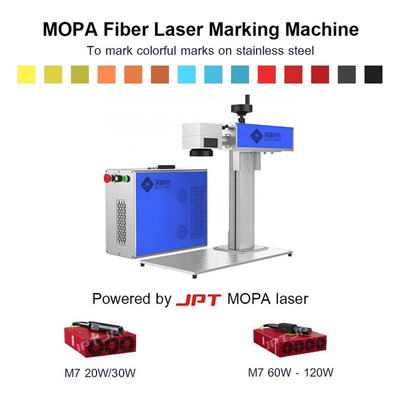

★Real fiber laser marking machine display

50W 100W 3D Mopa Color Laser Marking Machine for Metal Deep Engraving 0

50W 100W 3D Mopa Color Laser Marking Machine for Metal Deep Engraving 1



1.Laser source has perfect laser characteristics and good pulse shape control ability. Compared with

Q-switched fiber lasers, the JPT series lasers have more flexibility, can achieve lower and higher frequencies,
and have a smaller opening delay.


2.High speed China galvanometer, with double red lights help you focus laser.


3.Choose field lenses of different formats according to your needs, the types are 70x70mm 110x110mm
150x150mm 175x175mm 200x200mm.


4.Genuine EZCAD control software and BJJCZ card which support XP / WIN7/ IN8/ WIN10, 32 / 64 bit
operating system.



★ Sample Show

50W 100W 3D Mopa Color Laser Marking Machine for Metal Deep Engraving 2

★ Package Show

50W 100W 3D Mopa Color Laser Marking Machine for Metal Deep Engraving 3



About us
    Xinhong Machinery Manufacturing Co., Ltd is a professional high-tech enterprise integrating R&D,production and trade. Our company is mainly engaged in the developing, producing and exporting of fiber laser cutting machines, laser welding machines,laser marking machines,and metal processing machinery manufacturing. The mechanical equipment produced by the company is widely used in industrial fields and products are best-selling across the country and overseas markets.
    The company has a high-quality and professional management and technical team. "Quality First,Service First" is our manufacturing philosophy. To guarantee the interests of our customers, we promise lifelong after-sales service. With reliable quality and service, our products are deeply trusted by customers.
50W 100W 3D Mopa Color Laser Marking Machine for Metal Deep Engraving 4
