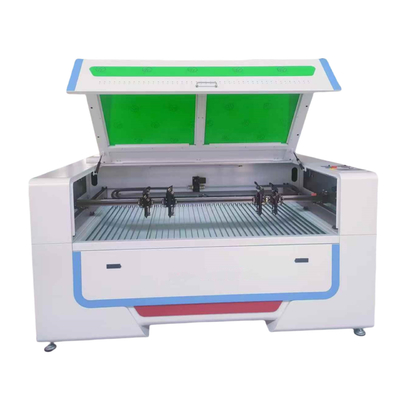

Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass

MOQ: 1 set
Price: USD1100-2100/Set
Standard Packaging: Wooden box
Delivery Period: 10-15 working days
Payment Method: T/T,Western Union
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
Xinhong Lasser
Certification
CE,RoHS,ISO9001 certificates
Model Number
XH-CO2 laser cutter
Product Name:
CO2 Laser Engraving Machine
Laser Source:
Reci/Yongli
Laser Type:
CO2
Power:
80W/100W/130W/150W/180W
Working Area:
4060/6090/1390/1610(optional)
Control System:
Ruida Software
Engraving Thickness:
1----5mm
Cutting Thickness:
1----15mm
Water Chiller:
Hanli/S&A
Machine Warranty:
2 Years Warranty
Product Description

Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass


★ Application Materials
The CO2 laser engraving and cutting machine is widely used in both industrial settings and everyday life. It is capable of cutting and engraving a variety of non-metal materials, including acrylic, wood, plywood, MDF, leather, rubber, and glass.

★ Product Features
Double function working table.
The working platform is transparent, the length of the engraving material is unlimited.
Import liner high speed side rail,which can ensure high precision, high speed and super long operation life.
Newly professional software and motherboard, powerful, and can continuously work under high temperature, support CorelDRAW output.

★ Technical Parameters

1 Model XH-4060 XH-6090 XH-1390 XH-1610
2 Cutting Working Area 400*600mm 600*900mm 1300*900mm 1600*1000mm
3 Power 80W/100W/130W/150W/180W(customizable)
4 Laser Source Brand Reci/Yongli
5 Control System Ruida sofeware
6 Engraving speed 0-800mm/s
7 Engraving thickness 1----5mm
8 Cutting speed 0-400mm/s
9 Cutting thickness 1----15mm
10 Working material Non-metallic material
11 Water Chiller Hanli
12 Up and down work table 0--400mm electric lift(Optional auto focus)
13 Workbench honeycomb table or blade table(optional)
14 Gross weight 230KG
15 Machine Warranty 2 years warranty


★More Machine Details

1. Laser head with CCD camera
The aluminum alloy adjustable laser head is
lighter than other metal laser heads,which
can minimize the inertia error when the laser
head moves.

2.Famous brand RECI & CWG tube
Machine choose famous brand laser tube,
durable and stable performance, lifetime last
10000 hours, and we offer you 12 months

3.High precision module linear
The X / Y axis uses a high-precision module
linear & square rail to improve cutting
engraving accuracy. More accurate and
longer working life.

4.Ruida Control System
Ruida control system Supports USB cable
controlled by computer and and also offline
control system by just a U disk. Compatible
with lightburn.

5.Taiwan Hiwin Mute slider
We use the Taiwan Hiwin silent slider to
reduce the resistance of the laser head and
the plotter during the movement, making the
laser machine work more smoothly.


Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass 0
Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass 1

★ 1390 Real Machine with 2-cutting-head Display

Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass 2

Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass 3

Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass 4



★ Sample Show
Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass 5

About us
    Xinhong Machinery Manufacturing Co., Ltd is a professional high-tech enterprise integrating R&D,production and trade. Our company is mainly engaged in the developing, producing and exporting of fiber laser cutting machines, laser welding machines,laser marking machines,and metal processing machinery manufacturing. The mechanical equipment produced by the company is widely used in industrial fields and products are best-selling across the country and overseas markets.
    The company has a high-quality and professional management and technical team. "Quality First,Service First" is our manufacturing philosophy. To guarantee the interests of our customers, we promise lifelong after-sales service. With reliable quality and service, our products are deeply trusted by customers.
Four Heads 130W 150W CO2 Laser Cutting and Engraving Machine for Acrylic MDF Glass 6
