High Power Side Pull 6000W 3015LS Metal Sheet Fiber Laser Cutting Machine

MOQ: 1 unit
Price: $26000-$27415/unit
Standard Packaging: container
Delivery Period: 30-40 working days
Payment Method: T/T
Supply Capacity: 1000 units per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XINHONG LASER
Certification
CE
Model Number
3015LS
Laser Type:
Fiber Laser Generator
Transmission System:
Gantry Double-drive Structure
Lubrication System:
Fully Automatic
Positioning Accuracy:
±0.03mm/1000mm
Graphic Format Supported:
CAD, DXF, Etc
Machine Size:
5130*2250*2040mm
Total Power:
35.5KW
Gross Weight:
4300kg
Product Description

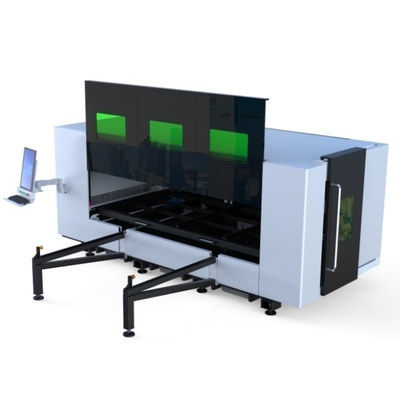

High Power Side Pull 6000W 3015LS Metal Sheet Fiber Laser Cutting Machine

The side-pull laser cutting machine, also known as a side-opening laser cutting machine, features a structural design distinct from traditional models with front-pull or vertical-opening doors. The term "side-pull" primarily refers to the cutting platform or protective door that opens from the side.

Advantages of Side-Pull Laser Cutting Machines

  1. Space-Efficient Design
    The side-pull structure is ideal for workshops with limited space or where equipment needs to be positioned against a wall. The machine can be placed closer to walls or other machines, maximizing floor space utilization and improving layout flexibility.

  2. Convenient Loading and Unloading
    The side-opening door or platform allows for quick and easy access, making it more convenient for operators or robotic arms to load and unload materials from the side. This streamlines the workflow and enhances overall efficiency.

  3. Improved Operational Safety
    The side-access design reduces the need for operators to enter the main cutting area, helping to minimize potential safety risks and allowing for safer handling of materials.

  4. Enhanced Automation Compatibility
    Side-pull configurations are often better suited for integration with automated feeding or unloading systems, supporting higher levels of production automation.

  5. User-Friendly Operation
    With easier side access, maintenance and monitoring become more straightforward, reducing downtime and simplifying routine operations.


The operator stands on the side, with a good viewing angle and easy access to the operation interface, which improves the user experience.

Model 3015LS
Working area

3000*1500mm
Laser Generator 6000W MAX
Laser Head

BLT421 auto focus
Control system and software

FSCUT4000E, CypcutE
Air condition Included
Water Chiller Hanli
Transmisstion system

Gantry double-drive structure

High Power Side Pull 6000W 3015LS Metal Sheet Fiber Laser Cutting Machine 0

High Power Side Pull 6000W 3015LS Metal Sheet Fiber Laser Cutting Machine 1

High Power Side Pull 6000W 3015LS Metal Sheet Fiber Laser Cutting Machine 2
