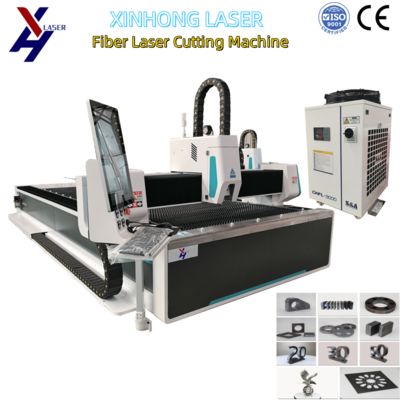

1500*3000mm CNC Fiber Laser Cutting Machine Stainless Steel Metal Laser Cutter

MOQ: 1 set
Price: USD12000-16000 per set
Standard Packaging: Standard Plywood Case
Delivery Period: 15-20 workdays
Payment Method: L/C, T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Xinhong Laser
Certification
CE
Model Number
XH-3015L
Laser Source Brand:
Raycus/MAX/IPG
Laser Head:
Raytools
Control System:
Cypcut
Pneumatically Part:
SMC
Guiding Rail:
Taiwan Hiwin
Helical Rack:
Taiwan YYC
Motor:
Yaskawa Servo
Power:
1500w/2000w/3000w/6000w/12000W
Cutting Working Area:
3000*1500/4000*2000/6000*2500mm
Machine Warranty:
Lifetime Warranty
Highlight:

1500*3000mm CNC Fiber Cutting Machine

,

Stainless Steel Laser Cutter

Product Description

2025 1500*3000mm CNC Fiber Laser Cutting Machine Stainless Steel Metal Laser Cutter


Product Application

    Fiber metal laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics,electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries. Mainly used for carbon steel cutting, silicon steel cutting, stainless steel cutting, aluminum alloy cutting, titanium alloy cutting,galvanized steel sheet cutting, pickling board cutting, aluminum zinc plate cutting, copper cutting and many kinds of metal materials cutting and so on.


Product Features

1. The laser cut steel panels with chiller can effectively reduce the temperature of the lens and prevent the lens from deforming or bursting.

Stable operation, high work efficiency, effective noise reduction and long service life.
2. The laser cut steel panels with professional CNC control system adopts optical fiber communication, the signal is stable, and the response speed is fast, which greatly improves the working life.
3. The size of the mobile phone's smart remote control handle can remotely control the laser cut steel panels cutting, emergency stop and other operations at any time.
4. The gantry structure expands the cutting range and improves the processing accuracy of the laser cut steel panels.



Techinical Parameters

1 Model XH-3015L XH4020L XH-6025L XH-8025L
2 Cutting Working Area 3000*1500mm 4000*2000mm 6000*2500mm 8000*2500mm
3 Power 1500w/2000w/3000w/6000w/12000W
4 Laser Source Brand Raycus/MAX/IPG
5 Laser Head Raytools
6 Control System Cypcut
7 Pneumatically Part SMC
8 Guiding Rail Taiwan Hiwin
9 Helical Rack Taiwan YYC
10 Motor Yaskawa Servo
11 Water Chiller Hanli
12 Gross weight 1200KG
13 Machine Warranty Lifetime

1500*3000mm CNC Fiber Laser Cutting Machine Stainless Steel Metal Laser Cutter 0
Machine Main Parts
1500*3000mm CNC Fiber Laser Cutting Machine Stainless Steel Metal Laser Cutter 1

More Details
1.Industrial Machine bed: A solid bed has high stability .It is unmatched by other materials and structures.
The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time
and remains unchanged for 50 years.
2.Laser Source
---Brand:MAX RAYCUS JPT IPG
---100000hours life time
---e stable, cost-efficient
---Free maintenance
3.control system
brand:CYPCUT
Details;edge seeking function and flying cutting function , intelligent typesetting ect
supported Format:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,NC,GBX etc...
4.servo motor
brand : japan fuji
details:
--X axis: one set 850w Japan Fuji servo motor and driver.
--Y axis: Two set 850w Japan Fuji servo motor and driver
--Z axis;one set 400w Japan Fuji servo motor and driver
5.SQUARE RAIL
brand :Taiwan HIWIN
Advantage:Low noise,wear-resistant,smooth to keep fast moving speed of laser head
Detaills:30mm width and 165 four pieces stock on every table to decrease the pressure of rail
6.water cooling system:
brand:1000w S&A chiller
Details:Dual cooling funtion,Hot water for laser head and cool water for laser source to keep them
around certain temperature and guarantee their normally work
1500*3000mm CNC Fiber Laser Cutting Machine Stainless Steel Metal Laser Cutter 2

Samples Show
1500*3000mm CNC Fiber Laser Cutting Machine Stainless Steel Metal Laser Cutter 31500*3000mm CNC Fiber Laser Cutting Machine Stainless Steel Metal Laser Cutter 4
Competitive Advantages
★The only one company with lifetime warranty to ensure the interests of our buyers
★Factory direct sales, we offer high quality at competitive price
★After-sales engineers provide online technology guidance from 8:00am to 24:00am
★Text manual and detailed installation video are provided
★Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil,
Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
