Air-Cooled 1500W-6000W Handheld Laser Welding Machine for Metal Fabrication

MOQ: 1 set
Price: USD2115-4999/Set
Standard Packaging: Wooden box
Delivery Period: 10-15 working days
Payment Method: T/T,Western Union
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
XH
Certification
CE,RoHS,ISO9001 certificates
Model Number
XH-Welder
Laser Source:
Raycus/Max (Optional)
Laser Type:
Fiber Laser
Type Of Welding Head:
Single/double Wobble Head(optional)
Suitable Material:
Aluminum, Carbon Steel, Stainless Steel, Galvanized Sheet, Etc
Power Supply:
220V ± 10%，380V ± 10%/50/60 Hz AC
Welding Thickness Range:
0.5-6mm
Cooling Type:
Air-cooling
Product Description

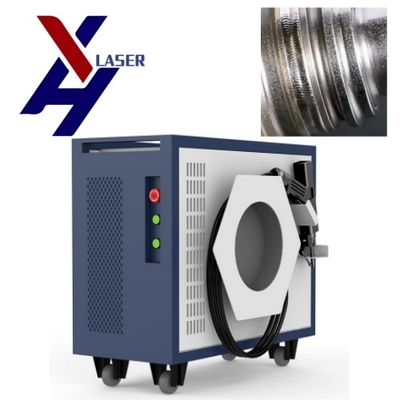

Air-Cooled 1500W-6000W Handheld Laser Welding Machine for Metal Fabrication


The Air-Cooled Laser Welding Machine is a compact and efficient solution for precision metal welding, eliminating the need for an external water chiller. Designed with an integrated air-cooling system, it is lighter, easier to maintain, and highly suitable for small to medium-scale production environments.

This machine adopts advanced fiber laser technology and a handheld welding gun, providing strong welding performance with minimal heat distortion. It is ideal for users seeking portability, stability, and cost-effectiveness.

Key Features:

  • Air-Cooling System: No external water chiller required – simplifies setup and reduces operating costs.

  • Compact & Portable: Lightweight design, ideal for workshops with limited space.

  • Stable Performance: Delivers consistent laser output with smooth and strong welds.

  • Energy Efficient: Reduced power consumption compared to water-cooled systems.

  • Easy Operation: Handheld welding gun and intuitive interface make it suitable even for beginners.

Technical Parameters

Model XH1000 XH1500 XH2000 XH3000
Power 1000W 1500W 2000W 3000W
Welding Thickness 0.5-1.5mm 0.5-2mm 0.5-3mm 0.5-4mm
Laser Type Fiber Laser
Laser Source Brand Raycus/MAX/JPT(optional)
Control System Chaoqiang Weiye
Water Chiller Hanli/ S&A (optional)
Laser wavelength 1070nm±10nm
Power Supply 220V/1P for 1000W and 1500W
380V/3P for 2000W and 3000W
Gross weight 35KG
Machine Warranty Lifetime Warranty


Air-Cooled 1500W-6000W Handheld Laser Welding Machine for Metal Fabrication 0
Air-Cooled 1500W-6000W Handheld Laser Welding Machine for Metal Fabrication 1
